QIM SERIES / In-Line Mixers

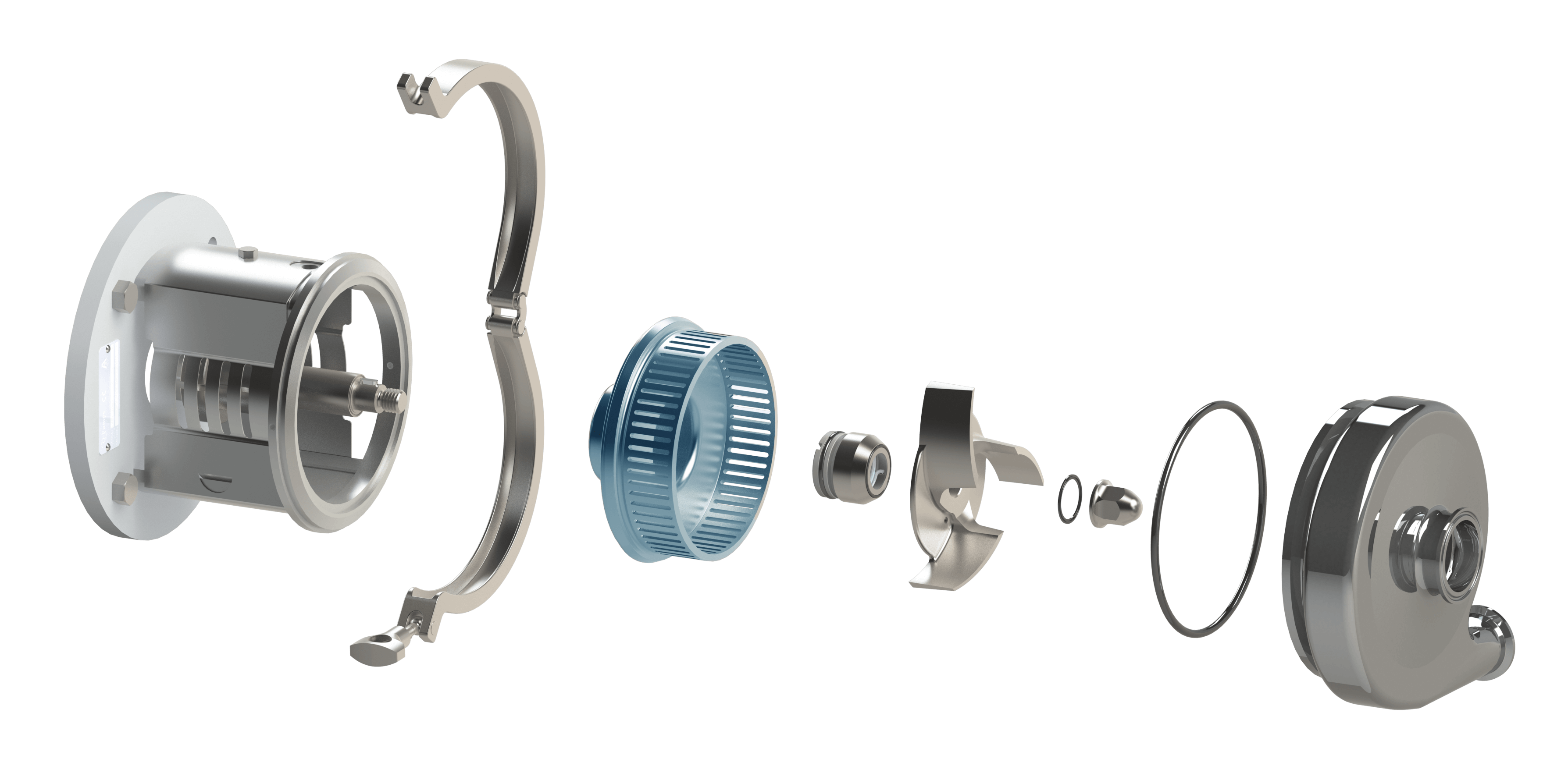

• Thanks to its modular design, QIM Inline Mixers can be converted into a QDB Dry Blender by adding a table and a cone

• It’s different backplate options makes the QIM tailor-made for each application

• A QC+ can be converted into a QIM

• Has a semi-open impeller design to keep pressurized and achieve better lubrication in the mechanical seal.

• Built in SS 316L with surface finish on all surfaces in contact with the fluid 32 Ra maximum

• Completely drainable with the discharge in horizontal position

• Use of o-ring to achieve a better seal

• Easy maintenance and high efficiency

• 5 different backplates options for better performance

• Designed under 3-A and EHEDG standards

Reference Data

Flow: 352 gpm / 1,333 lpm

Pressure: 6 bar / 92 psi

Viscosity: 600 cP

Temperature: 10º to 150ºC / 14º to 302ºF
